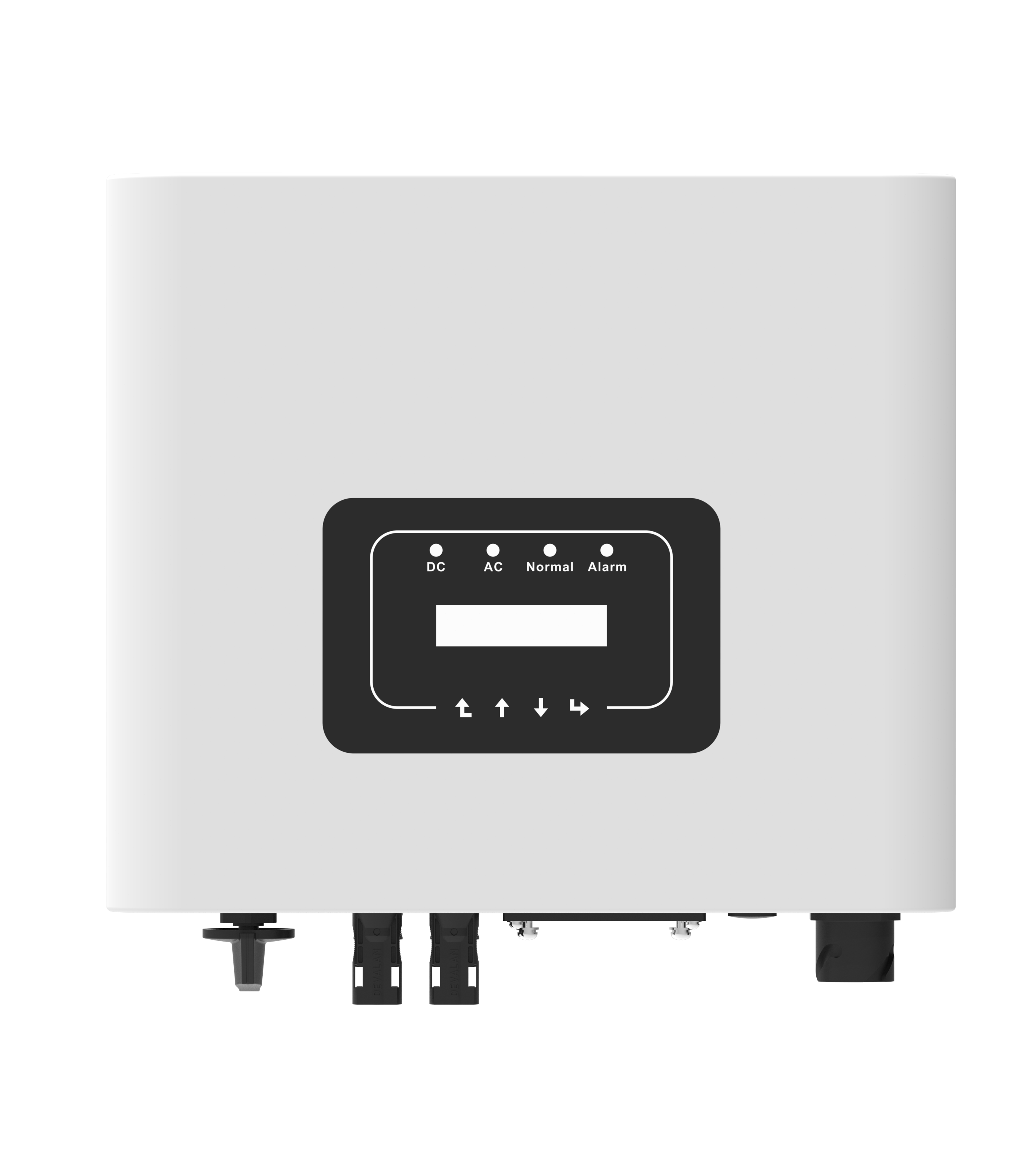

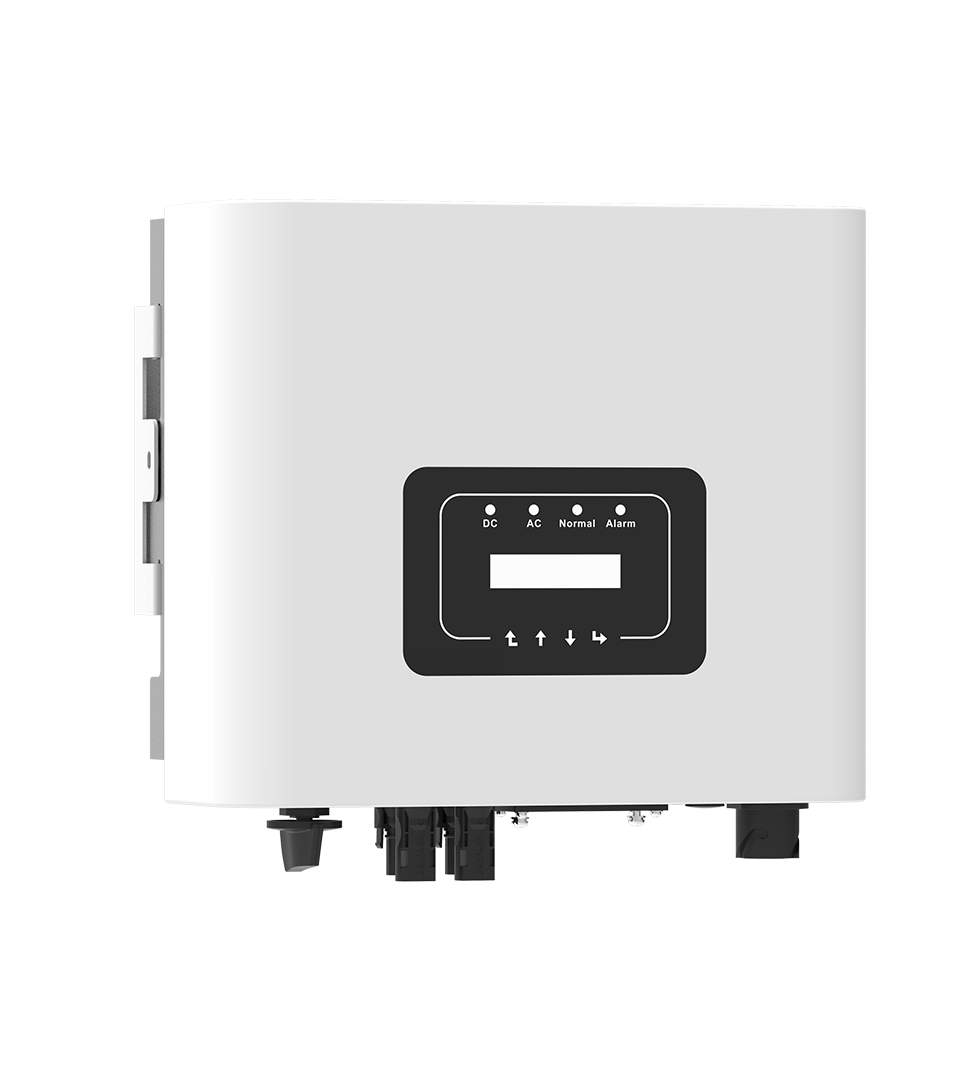

| Model |
SUN-3.6K-G04 |
SUN-4K-G04 |
SUN-4.2K-G04 |
SUN-4.6K-G04 |
SUN-5K-G04 |
SUN-5.2K-G04 |
SUN-6K-G04 |
SUN-6.2K-G04 |
|
PV String Input Data
|
|
Max. PV Input Power (kW)
|
4.7 |
5.2 |
5.46 |
5.98 |
6.5 |
6.76 |
7.8 |
8.06 |
|
Max. PV Input Voltage (V)
|
550 |
|
Start-up Voltage (V)
|
80 |
| MPPT Voltage Range (V) |
70-500 |
| Rated PV Input Voltage (V) |
360 |
| Max. Operating PV Input Current (A) |
13+13 |
| Max. Input Short Circuit Current (A) |
19.5+19.5 |
|
No. of MPP Trackers/
No. of Strings per MPP Tracker
|
2/1+1 |
| AC Output Side |
| Rated AC Output Active Power (kW) |
3.6 |
4 |
4.2 |
4.6 |
5 |
5.2 |
6 |
6.2 |
|
Max. AC Output Apparent Power (kVA)
|
3.96 |
4.4 |
4.62 |
5.06 |
5.5 |
5.27 |
6.6 |
6.82 |
| Rated AC Output Current (A) |
16.4/15.7 |
18.2/17.4 |
19.1/18.3 |
20.9/20 |
22.7/21.7 |
23.7/22.7 |
27.3/26.1 |
28.2/27 |
| Max. AC Output Current (A) |
18/17.2 |
20/19.1 |
21/20.1 |
23/22 |
25/23.9 |
26/24.9 |
30/28.7 |
31/29.7 |
| Rated Output Voltage/Range (V) |
220/230 0.85Un-1.1Un |
| Grid Connection Form |
L/N/PE |
|
Rated Output Grid Frequency/
Range(Hz)
|
50/45-55, 60/55-65 |
| Power Factor Adjustment Range |
0.8 leading to 0.8 lagging |
|
Total Current Harmonic Distortion THDi
|
<3% |
| DC Injection Current |
<0.5% |
| Efficiency |
| Max.Efficiency |
97.30% |
97.50% |
| Euro Efficiency |
96.90% |
97.00% |
| MPPT Efficiency |
>99% |
|
Equipment Protection
|
|
DC Polarity Reverse Connection
Protection
|
Yes |
| AC Output Overcurrent Protection |
Yes |
| AC Output Overvoltage Protection |
Yes |
| AC Output Short Circuit Protection |
Yes |
| Thermal Protection |
Yes |
|
DC Terminal Insulation Impedance
Monitoring
|
Yes |
| DC Component Monitoring |
Yes |
| Ground Fault Current Monitoring |
Yes |
|
Arc Fault Circuit Interrupter (AFCI)
|
Optional
|
| Power Network Monitoring |
Yes |
| Island Protection Monitoring |
Yes |
| Earth Fault Detection |
Yes |
| Overvoltage Load Drop Protection |
Yes |
| Residual Current (RCD) Detection |
Yes |
| Surge Protection Level |
TYPE II(DC), TYPE II(AC) |
| Interface |
| Communication Interface |
RS485/RS232 |
| Monitor Mode |
GPRS/WIFI/Bluetooth/4G/LAN(optional)
|
| General Data |
| Operating Temperature Range (°C) |
-25 to +65℃, >45℃ Derating |
| Permissible Ambient Humidity |
0-100% |
| Permissible Altitude (m) |
2000m |
| Noise (dB) |
≤35 |
| Ingress Protection(IP) Rating |
IP 65 |
| Inverter Topology |
Non-Isolated |
| Over Voltage Category |
OVC II(DC), OVC III(AC) |
| Cabinet Size (WxHxD mm) |
330×323×190 (Excluding Connectors and Brackets) |
| Weight (kg) |
8 |
| Warranty |
5years |
| Type of Cooling |
Natural Cooling |
| Grid Regulation |
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, G98,G99, VDE-AR-N 4105 |
| Safety EMC/Standard |
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
