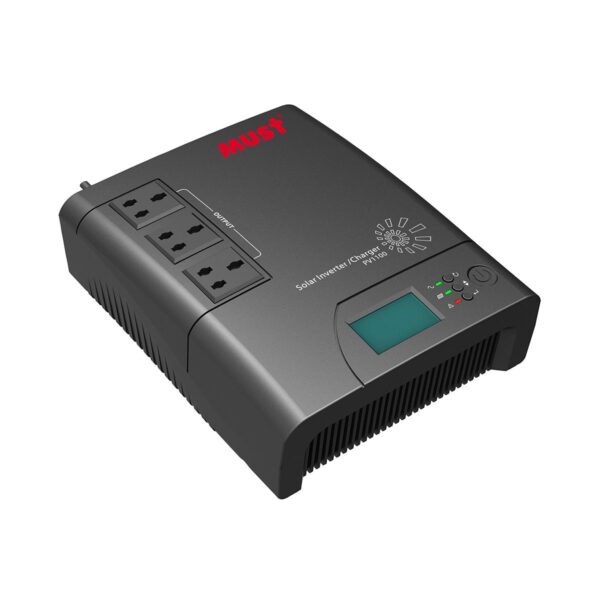

PV1300 is a cost effective , intelligent hybrid off grid solar inverter with power range 1000VA 1500VA. The LCD display offers friendly user-configurable button adjustment such as input voltage setting, AC/solar charger priority , mute setting. When battery voltage is low, it’s will automatically switch to AC grid to supply continuous power to the loads. It suitable for personal home use.
Simulated sine wave inverter
• Built-in 50A PWM Solar Charge Controller
• MFD (multi-function display)
• 20A standard charging current from utility
• AC/solar priority for output via MFD
• 3 steps charging algorithm
• Overload & short-circuit protection
• Battery reverse polarity protection
• Deep discharge protection
• Auto restart while AC/solar is recovering
Specification:
| MODEL | PV13-1012 | PV13-1512 | PV13-1024 | PV13-1524 | |
|---|---|---|---|---|---|
| Nominal Battery System Voltage | 12VDC | 12VDC | 24VDC | 24VDC | |
| NVERTER OUTPUT | |||||
| Rated Power | 1000VA/600W | 1500VA/1000W | 1000VA/600W | 1500VA/1000W | |
| Waveform | Simulated Sine-wave | ||||
| Nominal Output Voltage RMS | 230V | ||||
| Output Voltage Regulation | +10/-18% | ||||
| Output Frequency | 50Hz/60Hz ±1 Hz | ||||
| Inverter Efficiency(Peak) | >80% | ||||
| Line Mode Efficiency | >98% | ||||
| Typical Transfer Time | Typical 6~8ms 10ms max | ||||
| AC INPUT | |||||
| Voltage | 230VAC | ||||
| Selectable Voltage Range | Narrow | 175~260VAC | |||
| Wide | 140~270VAC | ||||
| Frequency Range | 40Hz-70Hz (Auto sensing) | ||||
| BATTERY | |||||
| Nominal Input Voltage | 12VDC | 24VDC | |||
| Minimum Start Voltage | 10.5VDC | 21.0VDC | |||
| Low Battery Alarm | 10.5VDC | 21VDC | |||
| Low Battery Cutoff | 10.0VDC | 20.0VDC | |||
| High Voltage Cutoff | 15.5VDC (max) | 31.0VDC (max) | |||
| SOLAR CHARGER & AC CHARGER | |||||
| Maximum PV Charge Current | 50A (max) | ||||
| Maximum PV Array Power | 450W/750W | 900W/1500W | |||
| PWM Range @ Operating Voltage | 16~55VDC | ||||
| Maximum PV Array Open Circuit Voltage | 55VDC | ||||
| Maximum Efficiency | >95% | ||||
| Standby Power Consumption | <2W | ||||
| AC Charger Voltage | 14.4V(max) | 28.8V(max) | |||
| AC Charging Current | 10A / 20A | ||||
| BYPASS & PROTECTION | |||||
| Nominal Input Frequency | 40Hz – 70Hz | ||||
| Overload Protection (SMPS Load) | FUSE | ||||
| Output Short Circuit Protection | FUSE | ||||
| Bypass Fuse Rating | 10A | ||||
| Max Bypass Current | 10Amp | ||||
| MECHANICAL SPECIFICATIONS | |||||
| Machine Dimensions (W*H*D) | 231*290*92mm | ||||
| Package Dimensions (W*H*D) | 595*375*315mm | ||||
| Net Weight (kg) | 2.8 | 4 | |||
| Gross Weight (kg) | 3.5 | 4.7 | |||
| OTHER | |||||
| Operation Temperature Range | 0°C~50°C | ||||
| Audible Noise | 50dB MAX | ||||
| Display | LED+LCD | ||||
| Brands | Must Energy |
|---|
